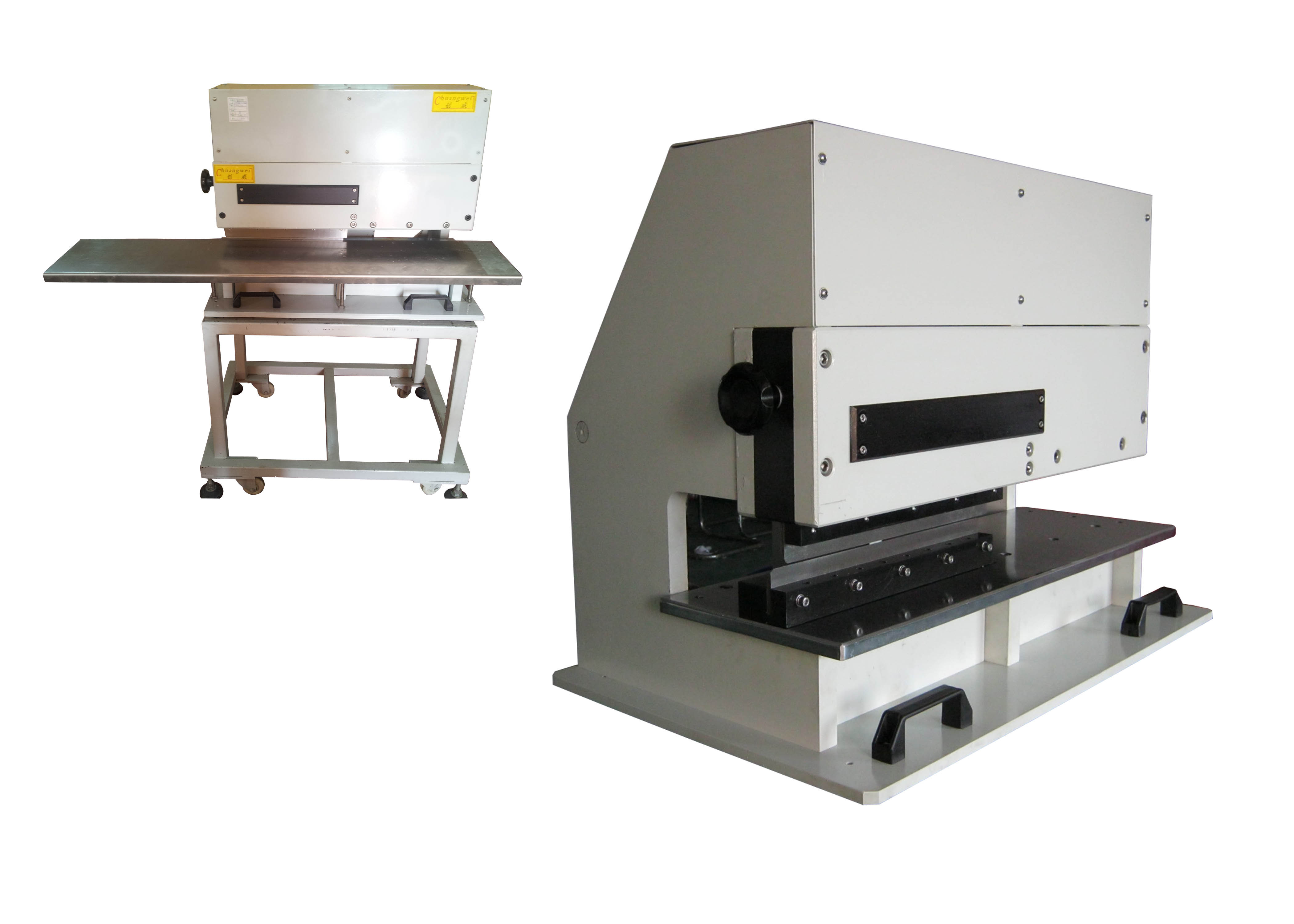

Durable FR4 PCB depanelizer V-Cut Machine Handling 1.2M LED Strip
Specifications
pcb separater equipment for export
1.lead time:3days
2.separate length:unlimited 3.separate thickness:1.0-3.5mm
3.Blades are made of Japanese steel: durable
PCB Depaneling Router Machine Specification:
|
Model |
CWVC-3 |
|
Max PCB Length |
unlimited(cutted by steps) |
|
Size |
780*500*620mm |
|
Thickness |
0.3-3.5mm |
|
Weight |
185kgs |
|
Air Pressure |
0.6-0.8Mpa |
Aluminium PCB depanelizer mahine Features :
Penumatic Depanelizer CWVC-3
1.Cut any length metal board more safety and easily.
2.Separates long boards directly,without turn direction
3.Separates boards up to 2.0mm thick Metal Board
4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives
The longest Minimize: unlimited
More photos for reference:
