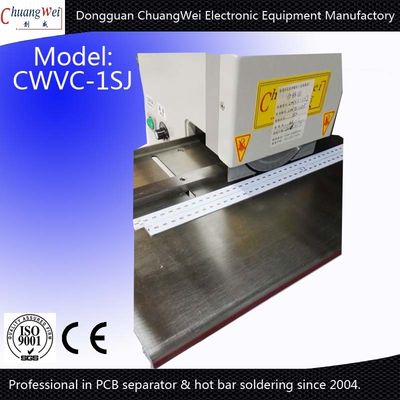

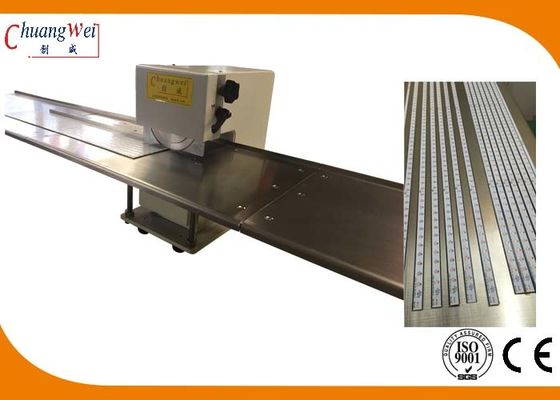

Pre-Scored PCB Depanelizer V Groove PCB Separator V Cut PCB Depaneling Quick Detail:
1.Max. PCB separating length:unlimited;
2.The price is very economical;
3.Safety use and easy operation;
4.Blade can be re-grinded to use.
Features:
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
Specifications
V-CUT PCB separator;
1.Max. PCB separating length:unlimited;
2.The price is very economical;
3.Safety use and easy operation.
|
Model |
CWVC-1SJ |
|
Max. PCB separating length |
unlimited |
|
PCB separating thickness |
1.0-3.5mm |
|
Blade amount |
up and down 2 circular blades |
|
PCB separating mode |
down circular blade with motor-driven |
|
PCB separating speed |
0~400mm/s |
|
Voltage and Power |
110/220 V 60W |
|
PCB separatorSize |
420X 280 X 400mm |
|
PCB separatorWeight |
25Kg |
|
workbench |
optional(can make different length according to your board) |
|
Staff allocated |

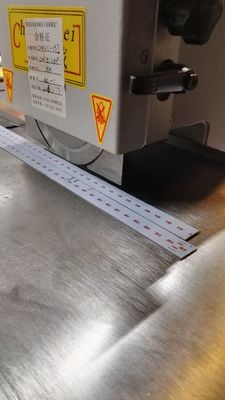

one person hold PCB and feed between the circular blades forseparation,fix position on pre-scored V groove |
Chuangwei PCB Separator Machine
***From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB separator machine base your actual requires. (any shape,length,thickness of PCB,aluminiun PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
***Any interest please contact us freely.
