High Resolution CCD and Camera PCB Separator Machine PCB Router

1 Takım
MOQ
Negotiable
fiyat

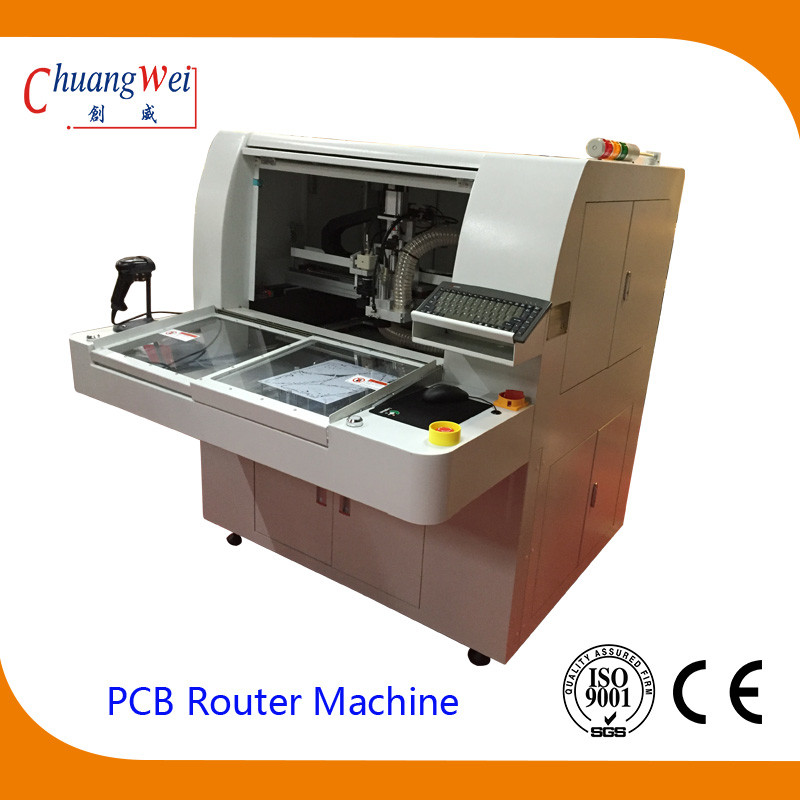

High Resolution CCD and Camera  PCB Separator Machine PCB Router
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Asgari Sipariş: 1 Takım
Garanti: 1 yıl
Standart Çalışma Alanı: 320 * 320 mm (özelleştirilebilir)
Pcb kalınlığı: 0.6-3.0mm
Güç kaynağı: 220V
ad: pcb ayırıcı
Vurgulamak:

pcb depaneling router

,

printed circuit board router

Temel bilgiler
Menşe yeri: Çin
Marka adı: Chuangwei
Sertifika: CE
Model numarası: CW-F01-S
Ödeme & teslimat koşulları
Ambalaj bilgileri: kontrplak durumda
Teslim süresi: 7 gün
Ödeme koşulları: Western Union, T / T, L / C
Yetenek temini: 1000 set / yıl
Ürün Açıklaması



High Resolution CCD and Camera TAB PCB Separator Machine PCB RouterThe best solution for PCB depaneling



  • Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate
  • Avoids the stress produced mechanically by using punch or bending
  • Suitable for cutting of a circle, arc and line of a finished plate



Rotational speed is adjustable

  1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance
  2. The high-speed spindle uses air radiation to reduce volume
  3. The head of the main shaft is suitable for the milling cutter specially designed for a PCB
  4. The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB



  1. High Resolution CCD and Camera  PCB Separator Machine PCB Router 0

The screen is friendly

  1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation
  2. The function selection, manual function selection and instruction for shift are selected by mouse
  3. Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.

PCB Separator Specification



Model CW-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm



Why choose us



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.

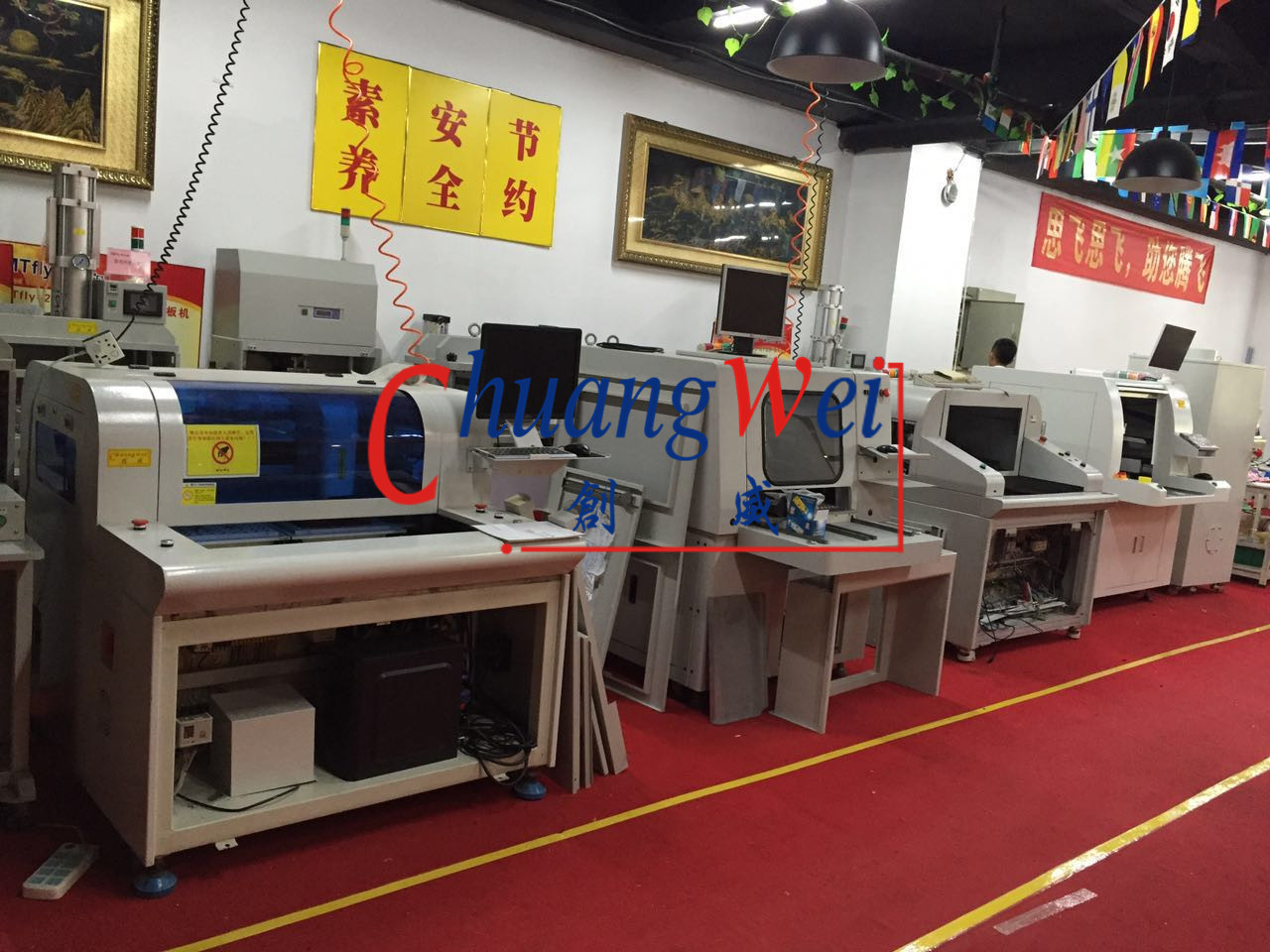

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine
