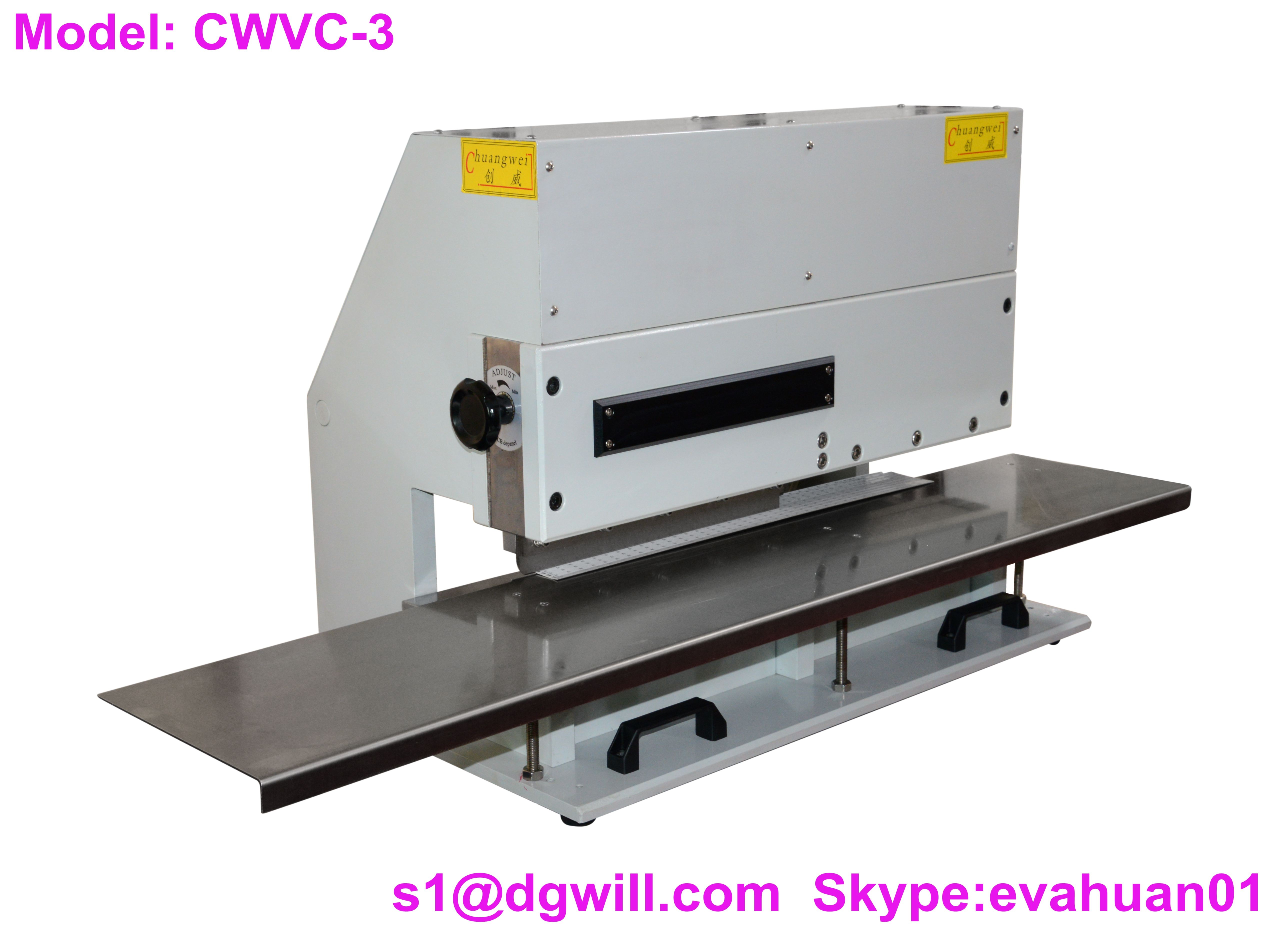

Linear Blades PCB Depaneling Machine Cutting LED Strip PCB Board Specifications:
| Model | CWVC - 3 |
| Max. PCB cutting length | unlimited |
| PCB cutting thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7 Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 780 x 500 x 620 mm |
| PCB depaneling machine weight | 185Kg |
Features:
1 . gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
2 . integrated waste suction prepared
3 . depaneling process without vibrations
4 . easy-to-service design
5 . pneumatically driven ( FESTO )
6 . operation and maintenance possible without precognition
7 . high power reserves , operations already possible at 2 bar
8 . pneumatic control placed in a separate unit for easier maintenance
Video:
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html
Main Export Market:
ASIA , MID-EAST, EUROPE , AFRICA , N-AMERICA , C-AMERICA , S-AMERICA , AUSTRALASIA , OTHER
